Fuji Electric produces molded case circuit breakers (MCCB) with the highest quality to meet international standards. Fuji Electric has a wide range of MCCBs with a compact design, high performances and safety features up to 1600A, 2, 3 and 4 pole breakers and also a variety of internal accessories such as shunt trips, under voltage trips and auxiliary switches
TRIPPING DEVICE: THERMAL-MAGNETIC
| Type | Poles | Rated Current In (A) | Breaking Cap. Icu/Ics/380V |
|---|---|---|---|

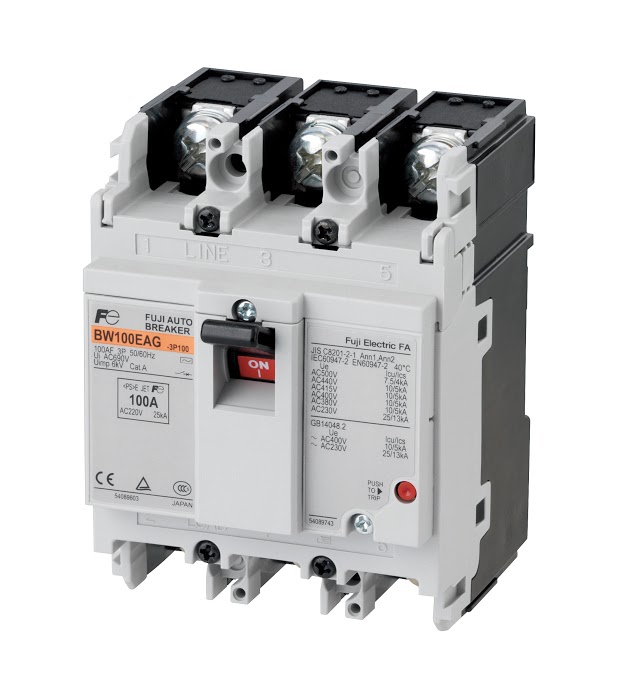

| BW100EAG | 3P | 75, 100A | 10/5 |
| BW125JAG | 3P | 20, 30, 40, 50, 60, 75, 100, 125A |
30/15 |
| BW160EAG | 3P | 125A 150A |
18/9 |
| BW160JAG | 3P | 125A 150A |
30/15 |
| BW250EAG | 3P | 175A 200A 225A 250A |
18/9 |
| BW250JAG | 3P | 175, 200A 225A 250A |
30/15 |
| BW400EAG | 3P | 300, 350, 400A | 30/15 |
| BW630EAG | 3P | 500A 630A |
36/18 |
| BW800EAG | 3P | 700, 800A | 36/18 |
| BW125JAG | 4P | 20, 30, 40, 50, 60, 75, 100, 125A |
30/15 |
| BW160JAG | 4P | 125, 150A | 30/15 |
| BW250JAG | 4P | 200, 225A 250 |
30/15 |
| BW400RAG | 4P | 300, 350, 400A | 50/25 |
| BW630RAG | 4P | 630A | 50/25 |
| BW800RAG | 4P | 800A | 50/25 |
SOLID STATE ELECTRONIC TYPE
ADJUSTABLE CURRENT
| Type | Poles | Rated Current In (A) | Breaking Cap. Icu/Ics/380V |
|---|---|---|---|
| SA/1003E | 3P | 500-600-700- 800-900-1000A |
65/49 |
| SA/1103E | 3P | 600-700-800- 900-1000-1200A |
65/49 |

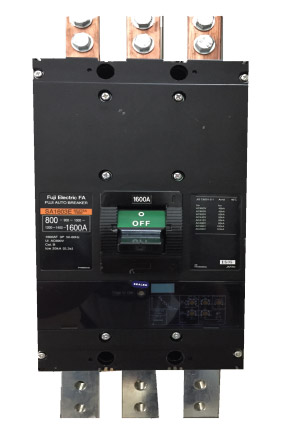

| SA/1603E | 3P | 800-900-1000-1200-1400-1600A | 85/64 |
Protection Funtions :
- Long-time delay tripping (Rated Current Adjustable)
- Adjustable instantaneous tripping
- Adjustable shot-time delay tripping
- Coordination with thermal magnetic trip type MCCB
- Adjustable pre-trip alarm
- Adjustable ground fault tripping
| ACCESSORIES FOR 32-100AF | |
|---|---|
| BZ6WL10CA | AUXILIARY SWITCH- LEFT SIDE |
| BZ6WR10CA | AUXILIARY SWITCH- RIGHT SIDE |
| BZ6KL10CA | ALARM SWITCH- LEFT SIDE |
| BZ6KR10CA | ALARM SWITCH- RIGHT SIDE |
| BZ6WKL10CA | AUXILIARY SWITCH+ALARM SWITCH-LEFT SIDE |
| BZ6WKR10CA | AUXILIARY SWITCH+ALARM SWITCH-RIGHT SIDE |
| BZ6FK10C | SHUNT TRIP 200-240V AC- LEFT SIDE |
| BZ6FK10CA | SHUNT TRIP 200-240V AC- RIGHT SIDE |
| BZ6RW10C | UNDERVOLTAGE TRIP 200V AC-RIGHT SIDE |
| BZ6R410C | UNDERVOLTAGE TRIP 220V AC-RIGHT SIDE |
| ACCESSORIES FOR 125, 160, 250AF | |
|---|---|
| BW9W1SG0-A | AUXILIARY SWITCH- LEFT SIDE |
| BW9W1SG0-R | AUXILIARY SWITCH- RIGHT SIDE |
| BW9K1SG0-R | ALARM SWITCH- RIGHT SIDE |
| BW9K1SG0-A | ALARM SWITCH- LEFT SIDE |
| BW9WKSG0-R | AUXILIARY SWITCH+ALARM SWITCH-RIGHT SIDE |
| BW9WKSG0-A | AUXILIARY SWITCH+ALARM SWITCH-LEFT SIDE |
| BW9FKG0 | SHUNT TRIP 200-240V AC/DC- LEFT SIDE |
| BW9FKG0-A | SHUNT TRIP 200-240V AC/DC- LEFT SIDE |
| BW9RGAK | UNDERVOLTAGE TRIP 200-240V AC-LEFT SIDE |
| BW9V0GA | V-TYPE EXTERNAL OPERATING HANDLE |
| ACCESSORIES FOR 400, 630, 800AF | |
|---|---|
| BW9W1SHA | AUXILIARY SWITCH x1- LEFT SIDE |
| BW9K1SHA | ALARM SWITCH x1- LEFT SIDE |
| BW9FHA-A | SHUNT TRIP DEVICE 100-240V AC/DC- LEFT SIDE |
| BW9RHA-K | UNDERVOLTAGE TRIP 200-240V AC/DC- LEFT SIDE |
| BW9V0HA | V-TYPE EXTERNAL OPERATING HANDLE FOR BW400 |
| BW9V0JA | V-TYPE EXTERNAL OPERATING HANDLE FOR BW630,800 |
